Traditional 2 Bay Post and Beam Carport

Standard Specifications:

• 150mm x 150mm Square Structural Timber Posts, sawn or planed finish
• 100mm x 220mm Structural Timber Beams, sawn or planed finish
• 75mm x 175mm Corner Timber Braces, sawn or planed finish
• Softwood cladding, rafters or trussed roof (depending on design), sawn finish
• 9mm OSB3 roof sarking board
• Tyvek or similar roof breather membrane over sarking
• 25mm x 38mm softwood counter-battens ready for roofing laths & tiling
• Adjustable height metal post bases & anchor bolts
• Post, beam, brace & cladding timbers are untreated, ready to receive stain or other treatment.
• Softwood framework & roofing timbers are pressure treated with Protim E406 UC2

There are a number of different roof style options available for the single car port

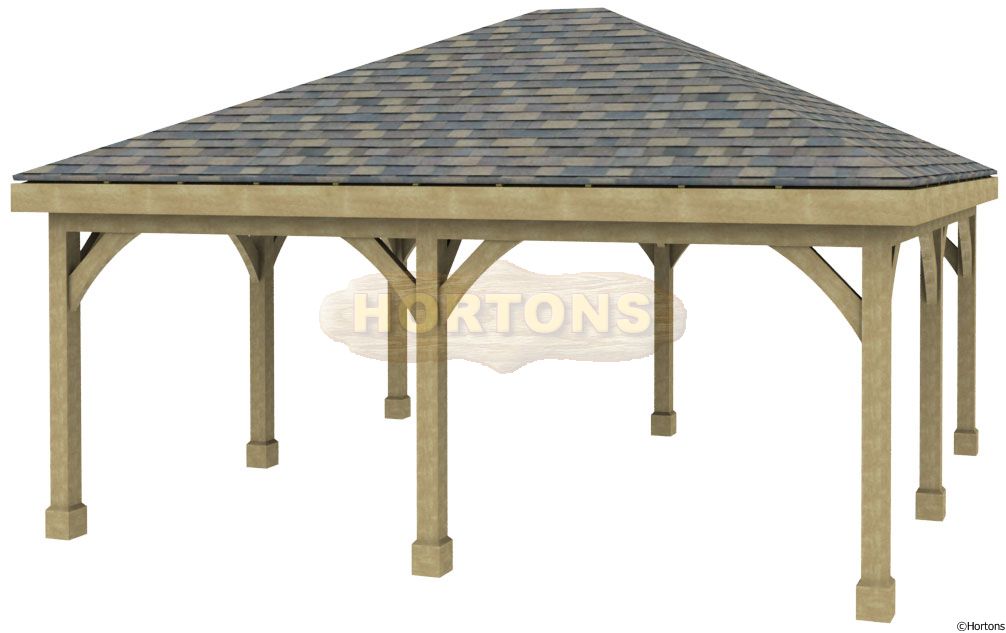

• Low 25 degree pitch hipped roof, Ridge = 3930mm - 3980mm (planning compliant if more than 2m from a boundary)

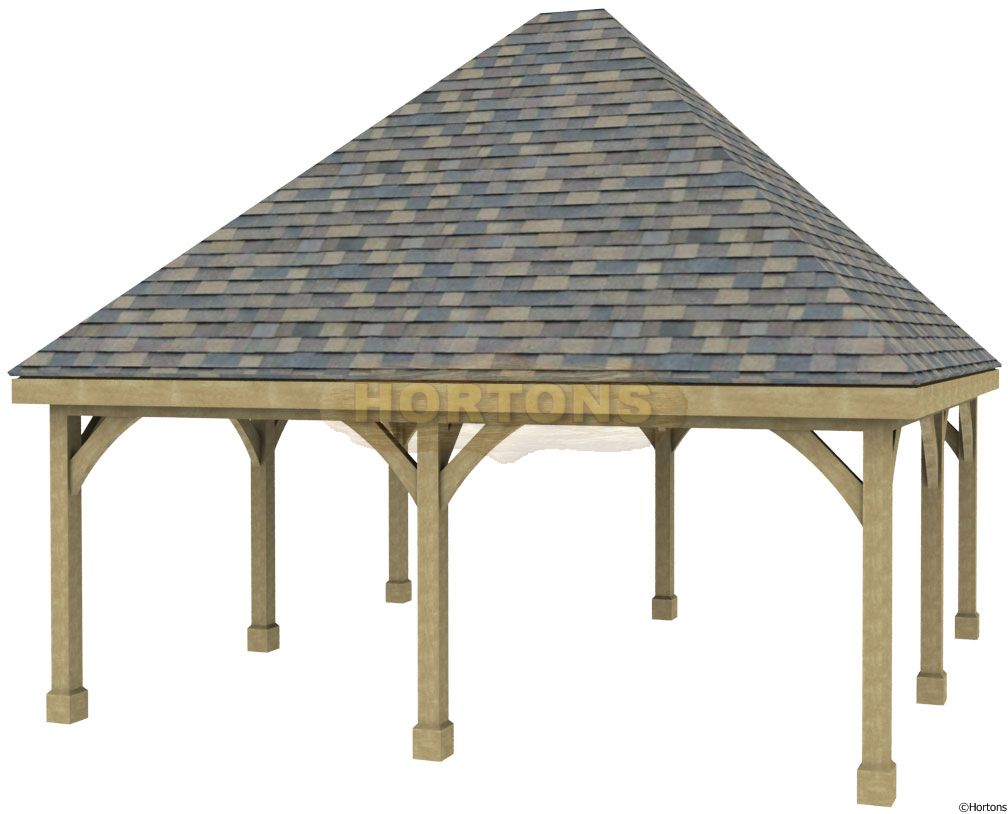

• High 45 degree pitch hipped roof, Ridge = 5293mm - 5343mm

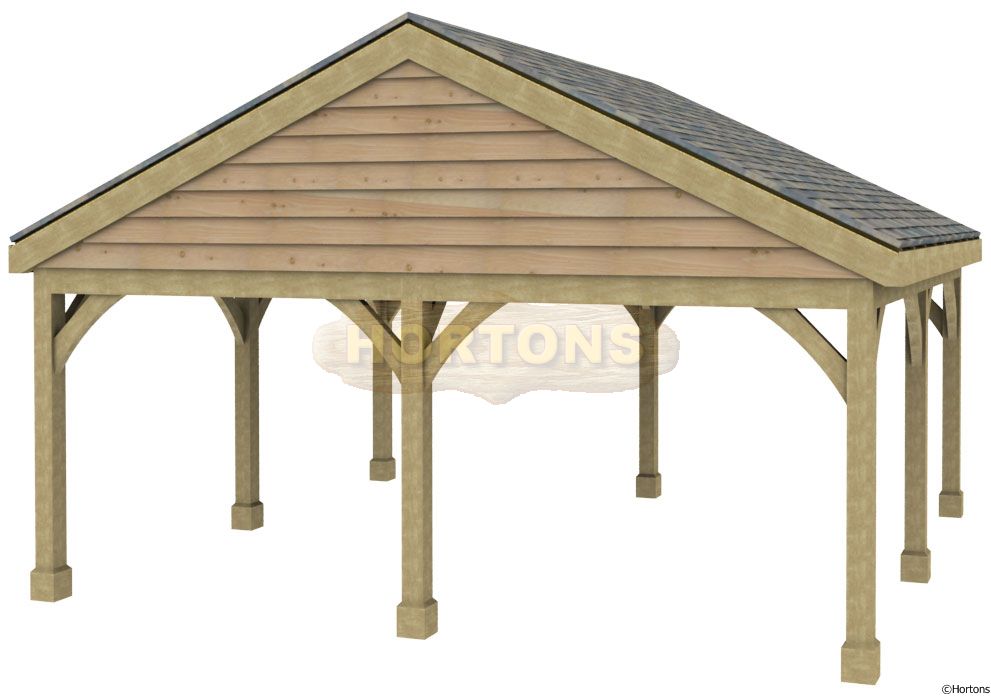

• Low pitch 25 degree front gable roof, Ridge = 4058mm - 4108mm

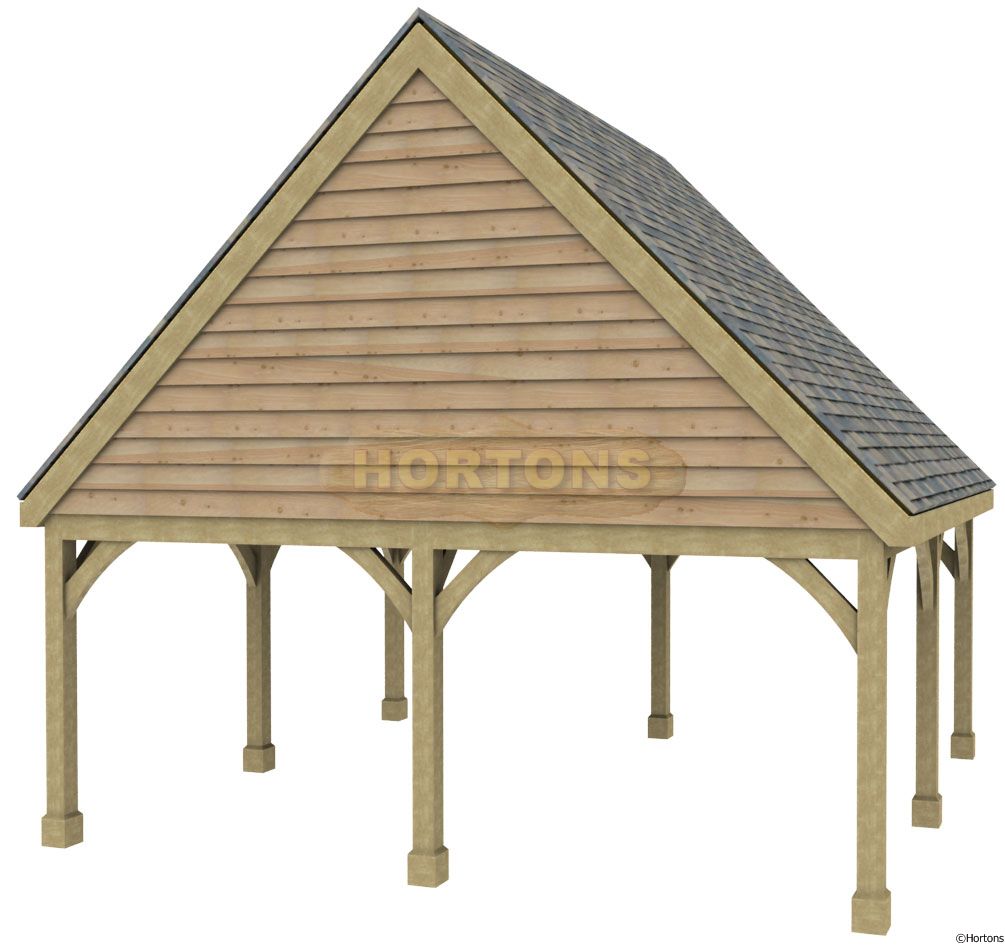

• High pitch 45 degree front gable roof, Ridge = 5568mm - 5618mm

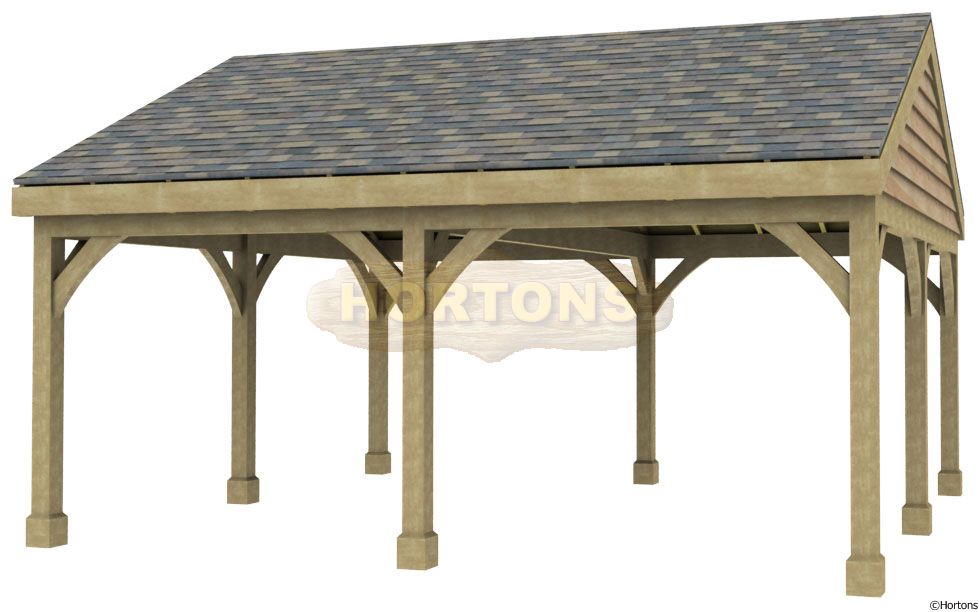

• Low pitch 25 degree side gable roof, Ridge = 3930mm - 3980mm (planning compliant if more than 2m from a boundary)

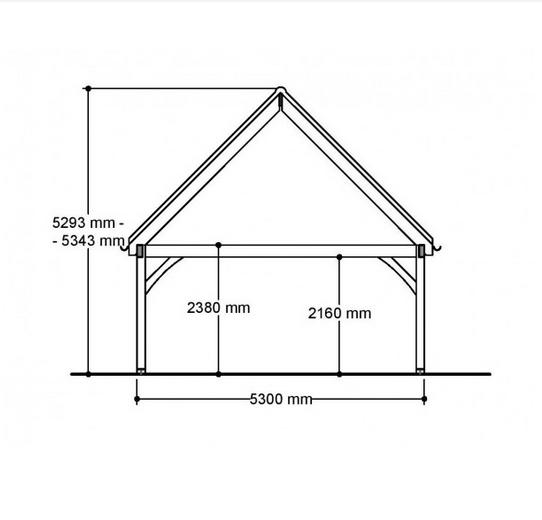

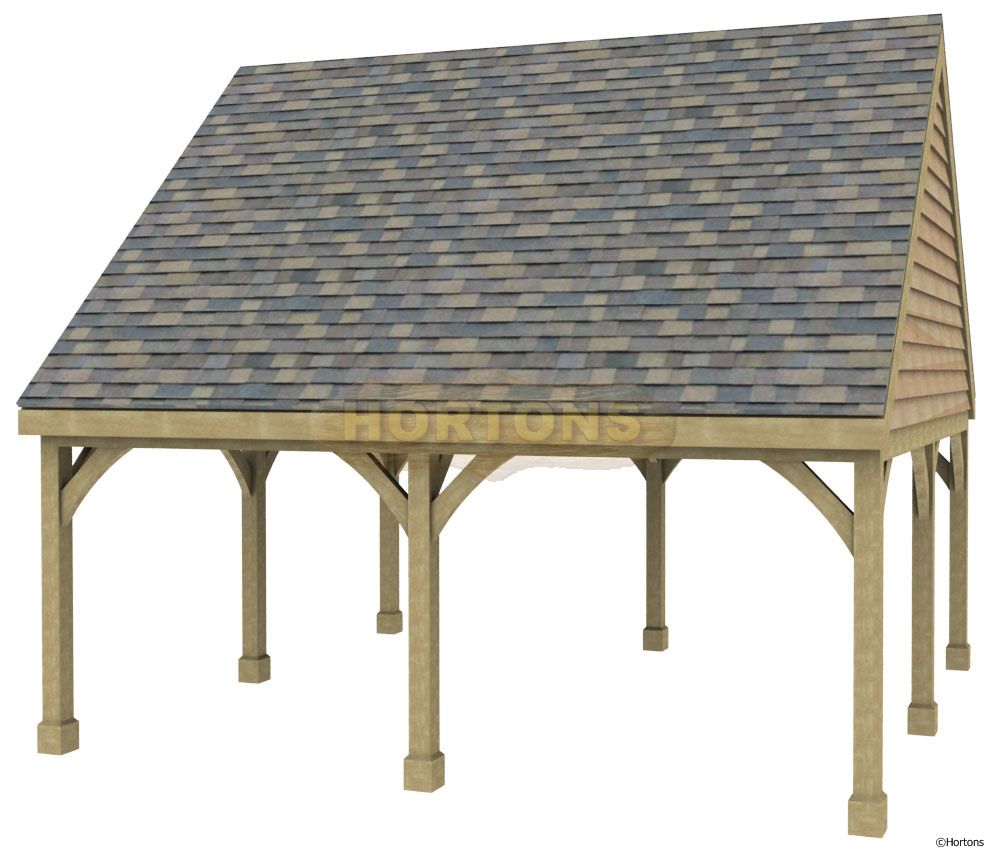

• High pitch 45 degree side gable roof, Ridge = 5293mm - 5343mm

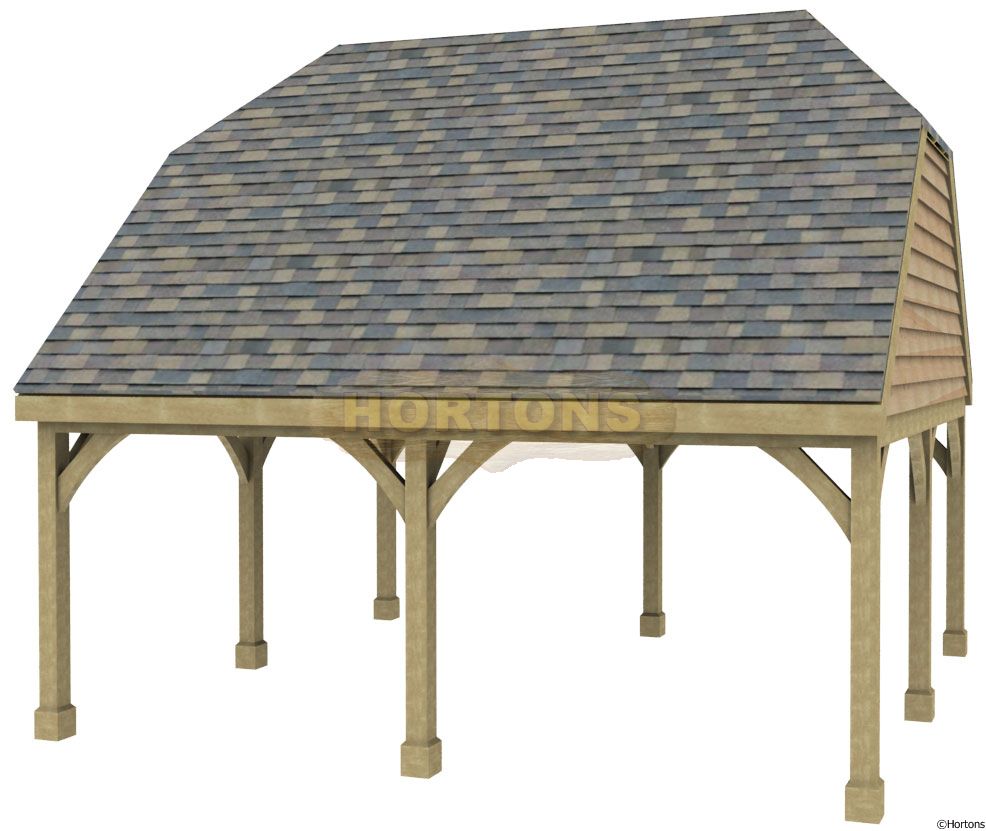

• High pitch 45 degree barn end roof, Ridge = 5293mm - 5343mm

There are also a wide variety of complimentary products and optional upgrades available for this post and beam carport

• Roof Coverings
• Personnel Doors

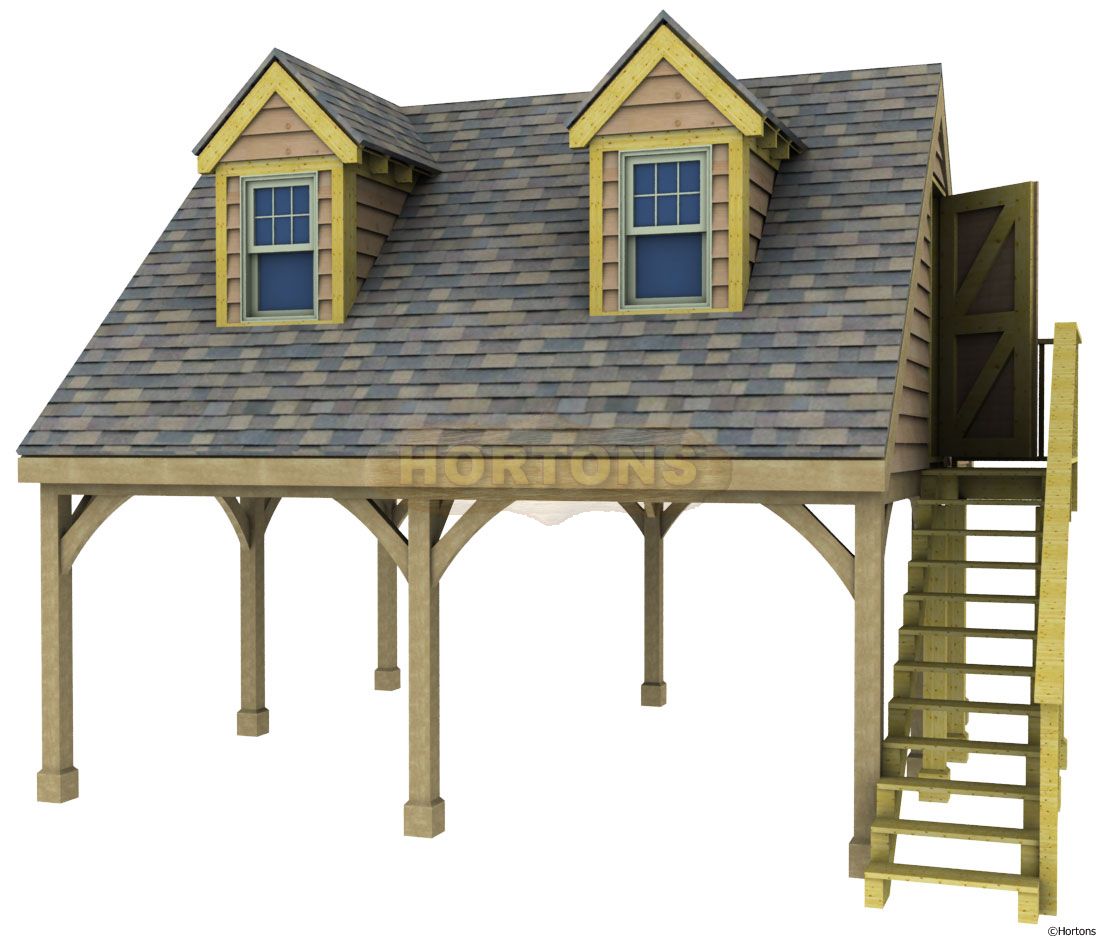

• Dormers
• Staircases

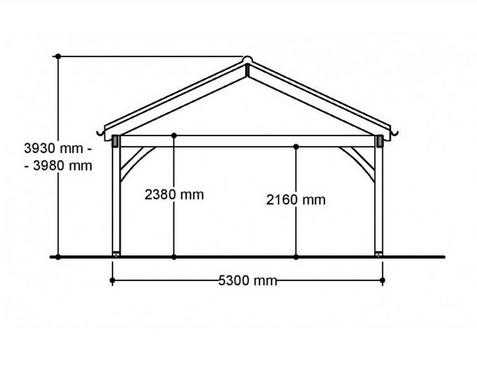

Additional Information for this standard 2 bay carport

Number Of Bays -     2
Min. Clearance Height - 2.160m
Max. Clearance Height - 2.210m

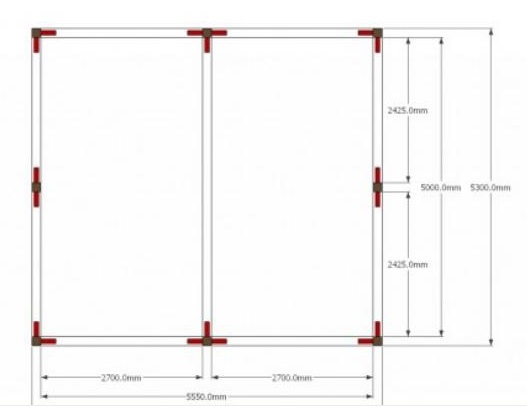

External Width - 5.850m
External Depth - 5.300m
Internal Width - 5.550m
Internal Depth - 5.000m

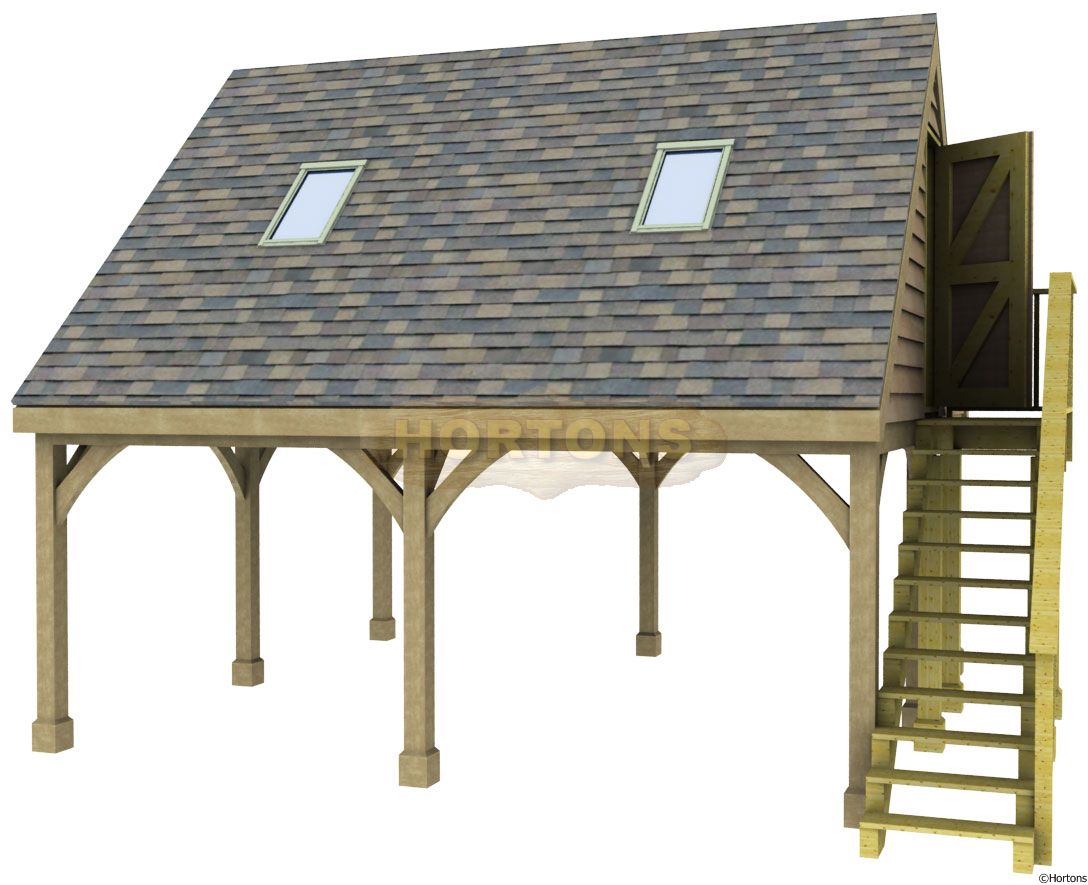

Price for dormer windows or Rooflights on application
