Traditional 1 Bay Post and Beam Carport

Standard Specifications:

• 150mm x 150mm Square Structural Timber Posts, sawn or planed finish
• 100mm x 220mm Structural Timber Beams, sawn or planed finish
• 75mm x 175mm Corner Timber Braces, sawn or planed finish
• Softwood cladding, rafters or trussed roof (depending on design), sawn finish
• 9mm OSB3 roof sarking board
• Tyvek or similar roof breather membrane over sarking
• 25mm x 38mm softwood counter-battens ready for roofing laths & tiling
• Adjustable height metal post bases & anchor bolts
• Post, beam, brace & cladding timbers are untreated, ready to receive stain or other treatment.
• Softwood roofing timbers are pressure treated with Protim E406 UC2

There are a number of different roof style options available for the single garage

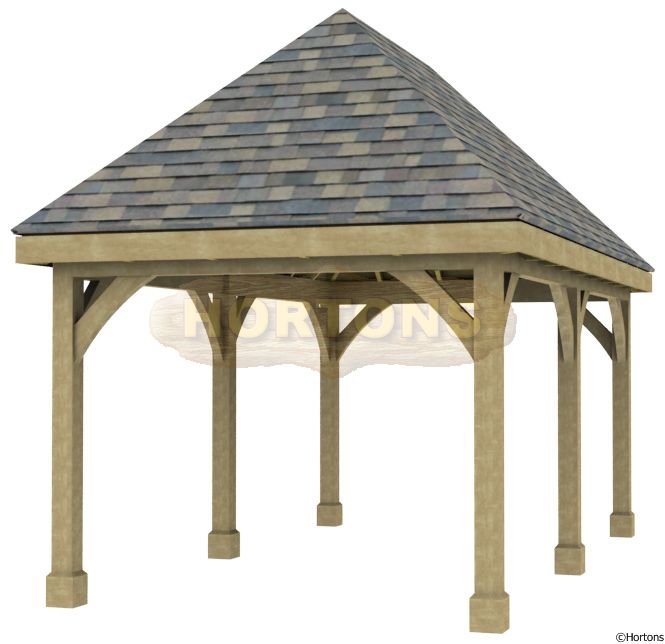

• Low pitch hipped roof, Ridge = 3393mm - 3443mm (planning compliant if more than 2m from a boundary)
• High pitch hipped roof, Ridge = 4143mm - 4193mm

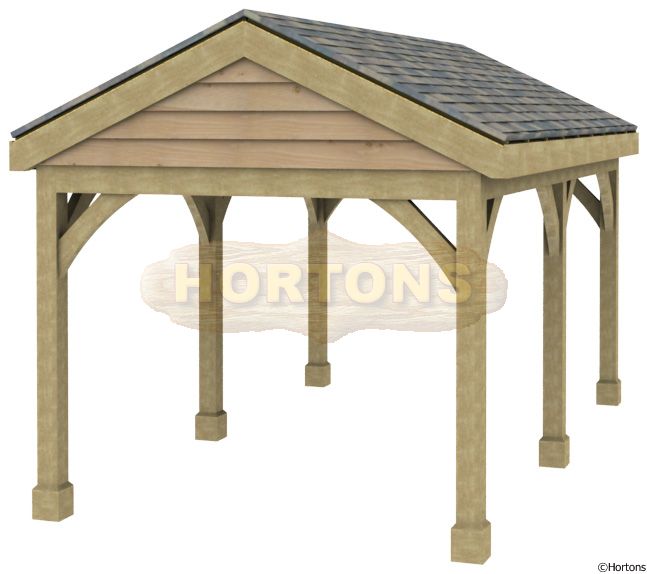

• Low pitch front gable roof, Ridge = 3393mm - 3443mm (planning compliant if more than 2m from a boundary)

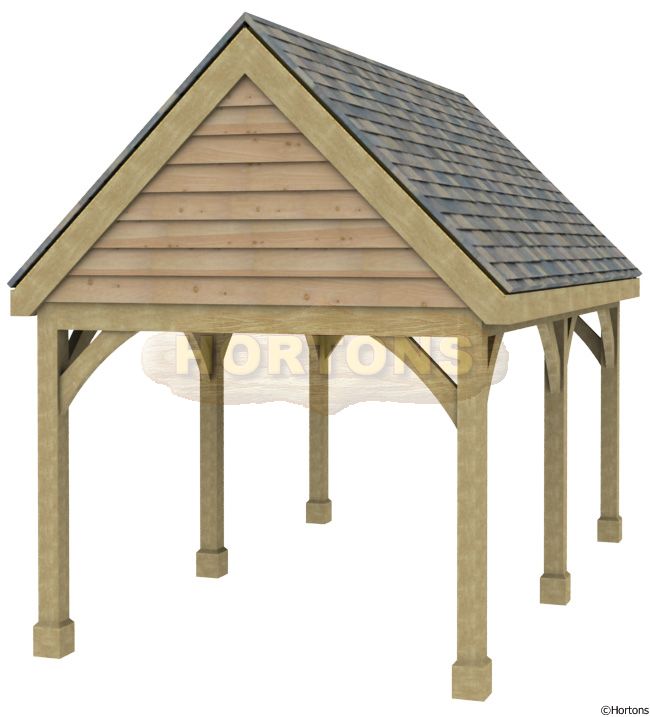

• High pitch front gable roof, Ridge = 4143mm - 4193mm

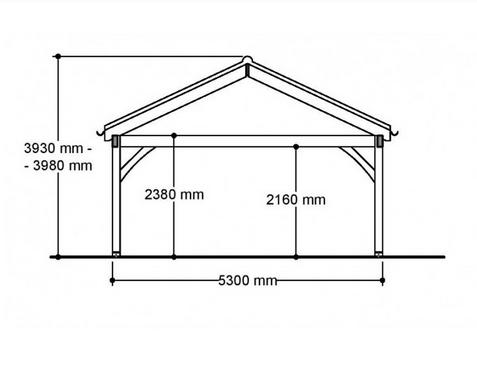

• Low pitch side gable roof, Ridge = 3930mm - 3989mm (planning compliant if more than 2m from a boundary)

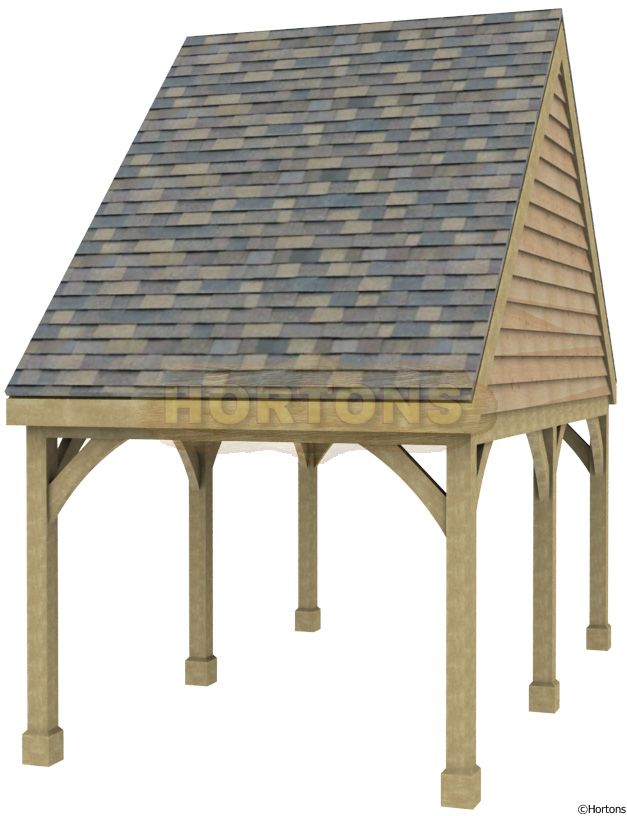

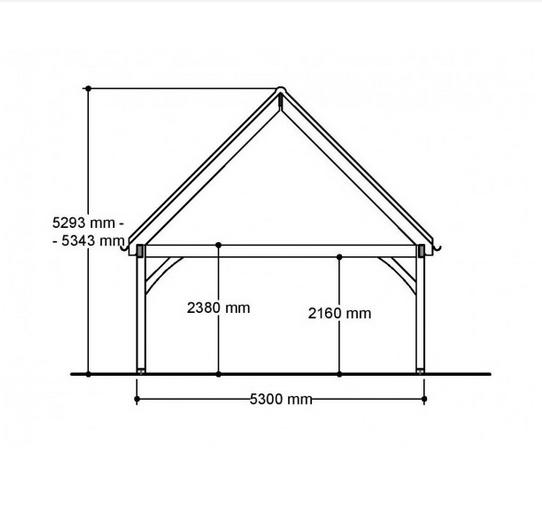

• High pitch side gable roof, Ridge = 5293mm - 5343mm

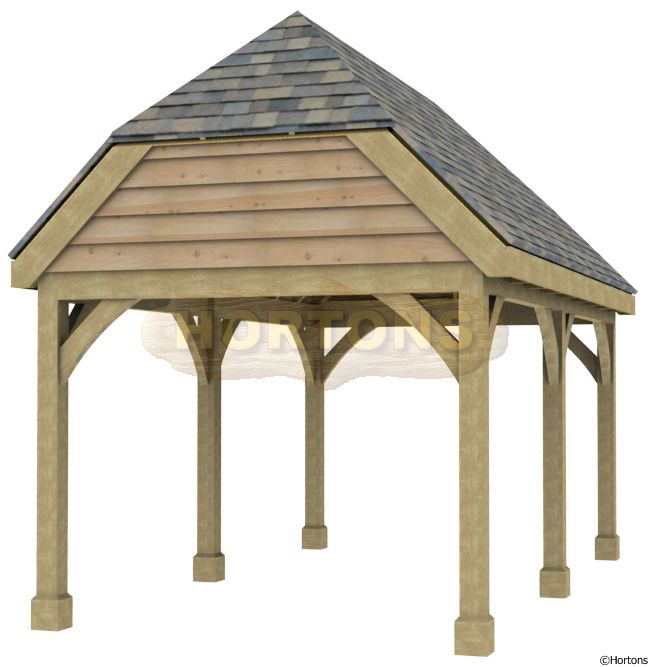

• High pitch barn end roof, Ridge = 4143mm - 4193mm

There are also a wide variety of complimentary products and optional upgrades available for this post and beam carport

• Roof Coverings
• Dormers
• Staircases

Additional Information for this standard single bay carport

Number Of Bays -     1
Min. Clearance Height - 2.160m
Max. Clearance Height - 2.210m

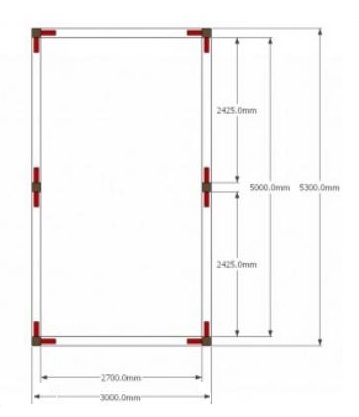

External Width - 3.000m
External Depth - 5.300m
Internal Width - 2.700m
Internal Depth - 5.000m

Please click here for the additional terms and conditions covering these buildings (bottom half of page)
