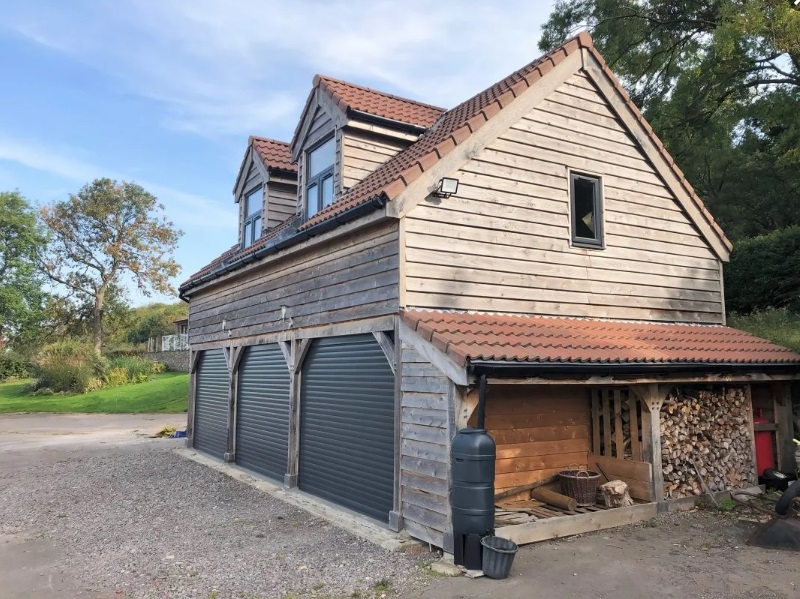

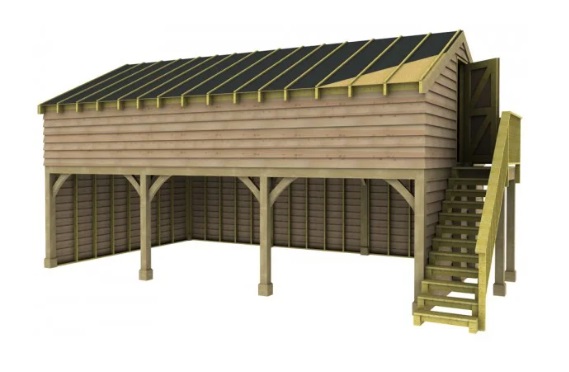

Post and Beam Room Above Garage With Raise Eaves

Standard Specifications:

• 130mm x 130mm Square Structural Timber Posts, sawn or planed finish
• 100mm x 220mm Structural Timber Beams, sawn or planed finish
• 75mm x 175mm Corner Timber Braces, sawn or planed finish
• Softwood rafters or trussed roof (depending on design), sawn finish
• 25mm x 38mm softwood counter-battens ready for roofing laths & tiling
• Sawn softwood20mm featheredged cladding for walls & gables
• 38mm x 89mm sawn wall stud framework
• Adjustable height metal post bases & anchor bolts
• Post, beam, brace & cladding timbers are untreated, ready to receive stain or other treatment.
• Softwood framework & roofing timbers are pressure treated with Protim E406 UC2
• Medium 40 degree side gable roof, Ridge = 6270mm - 6320mm
• Raised eaves to give the maximum useable space upstairs
• External staircase
• Access door at top of stairs for upstairs room

There are also a wide variety of complimentary products and optional upgrades available for this post and beam garage

• Roof Coverings
• Cladding
• Garage
• Personnel Doors
• Windows
• Velux Skylight windows
• Staircases

Additional Information for this raised eaves room above garage

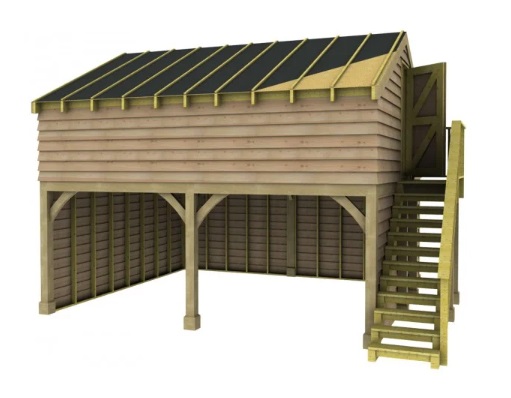

Number Of Bays - 2 or more
Min. Clearance Height - 2.160m
Max. Clearance Height - 2.210m
External Width - various to suit you
External Depth - 5.300m (as standard, but can be made to suit your requirements)
Bay width - 2.7m (as standard but can be altered to your specificatiuons)
