Room over Post and Beam Double Bay Garage


Starting at: £28,717.50

Scroll down to choose the options you require for your Online Quote:

Choose your roof style














Installation service for log cabins and timber buildings

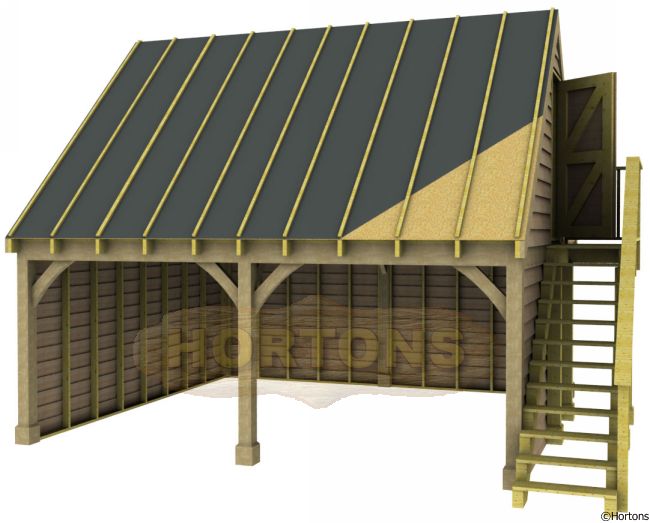

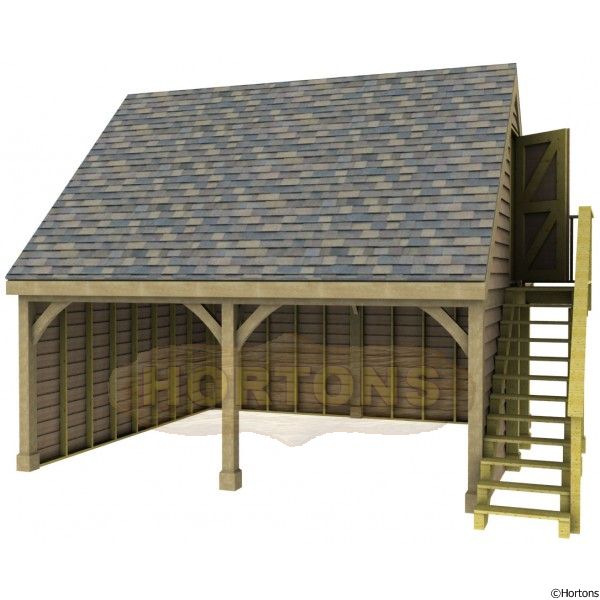

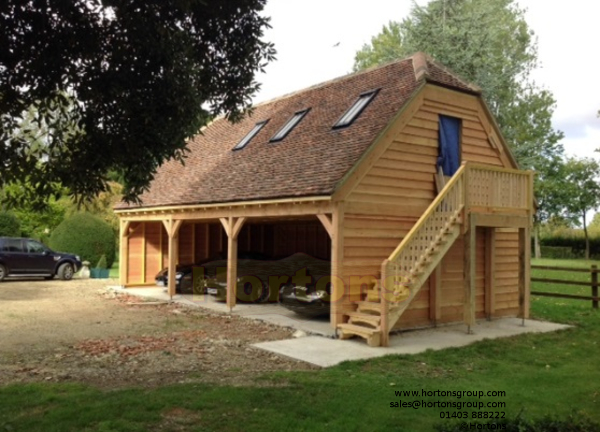

Traditional 2 Bay Post and Beam Room Above Garage

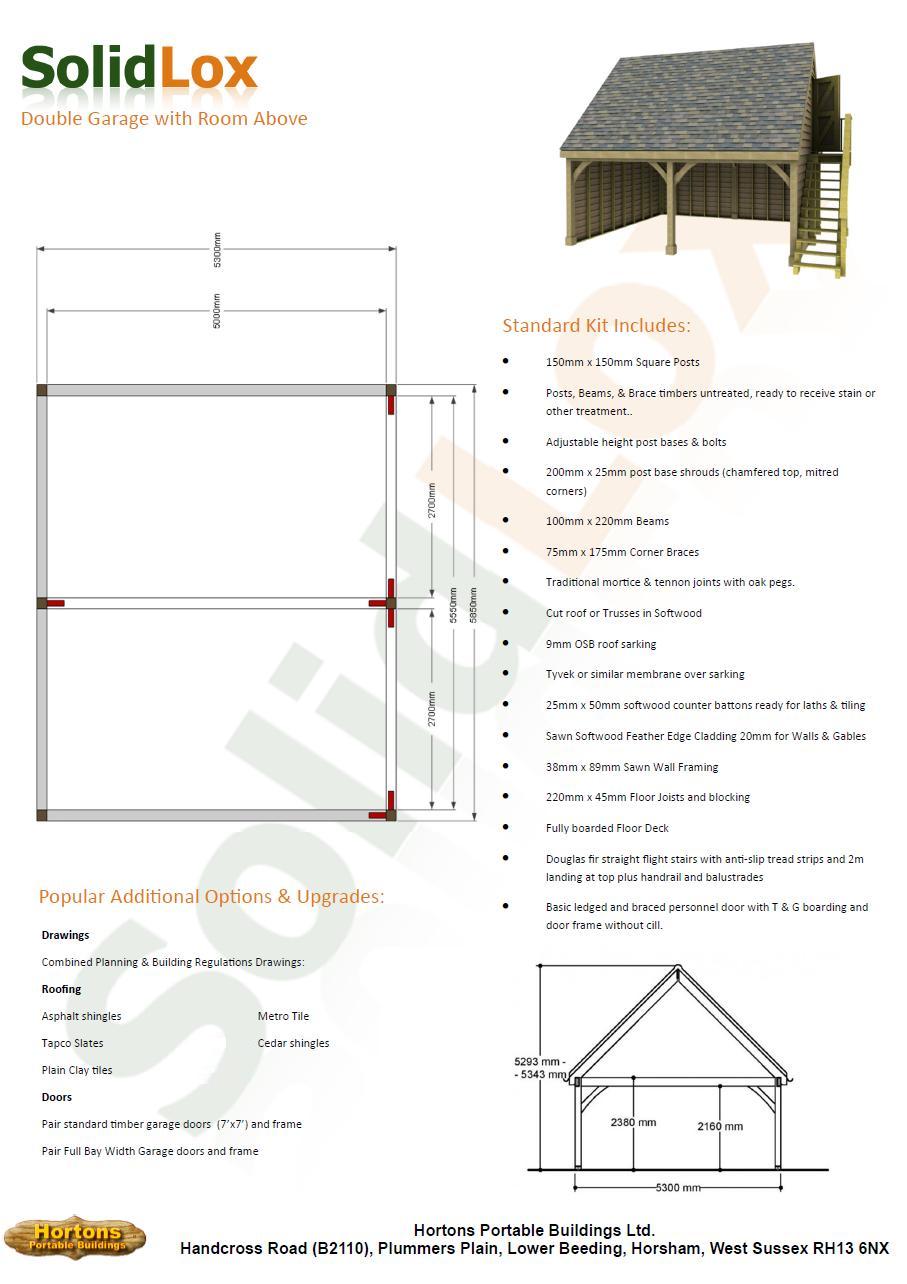

Standard Specifications:

  • 150mm x 150mm Square Structural Timber Posts, sawn or planed finish
  • 100mm x 220mm Structural Timber Beams, sawn or planed finish
  • 75mm x 175mm Corner Timber Braces, sawn or planed finish

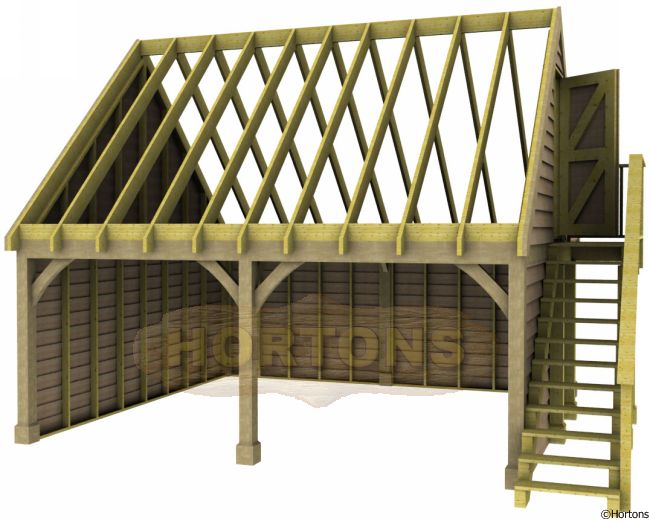

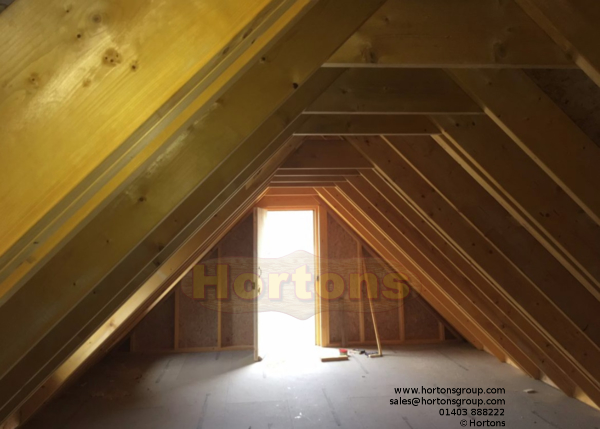

  • Softwood rafters or trussed roof (depending on design), sawn finish
  • 9mm OSB3 roof sarking board
  • Tyvek or similar roof breather membrane over sarking
  • 25mm x 38mm softwood counter-battens ready for roofing laths & tiling
  • Sawn softwood20mm featheredged cladding for walls & gables
  • 38mm x 89mm sawn wall stud framework
  • Adjustable height metal post bases & anchor bolts
  • Post, beam, brace & cladding timbers are untreated, ready to receive stain or other treatment.
  • Softwood framework & roofing timbers are pressure treated with Protim E406 UC2
  • High pitch 45 degree side gable roof, Ridge = 5293mm - 5343mm

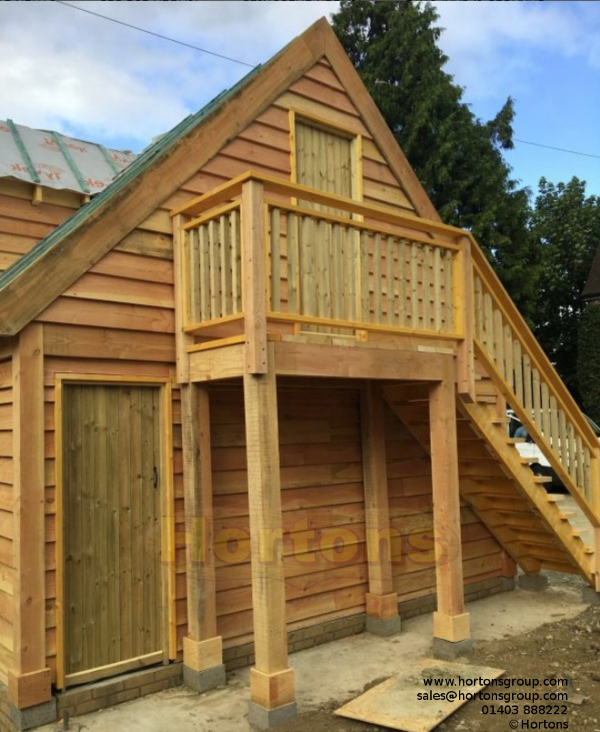

  • External staircase

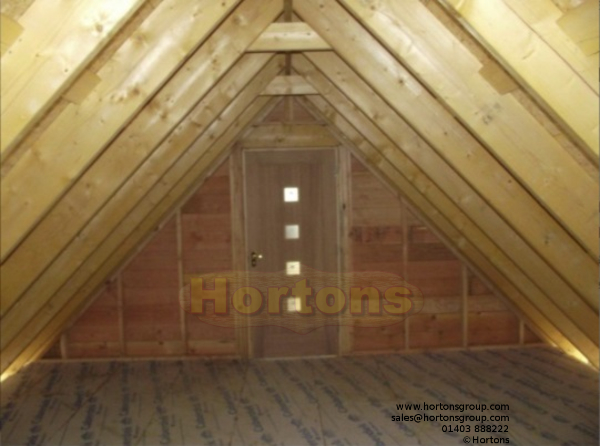

  • Access door at top of stairs for upstairs room

There are also a wide variety of complimentary products and optional upgrades available for this post and beam garage

  • Roof Coverings
  • Cladding
  • Garage
  • Personnel Doors
  • Windows

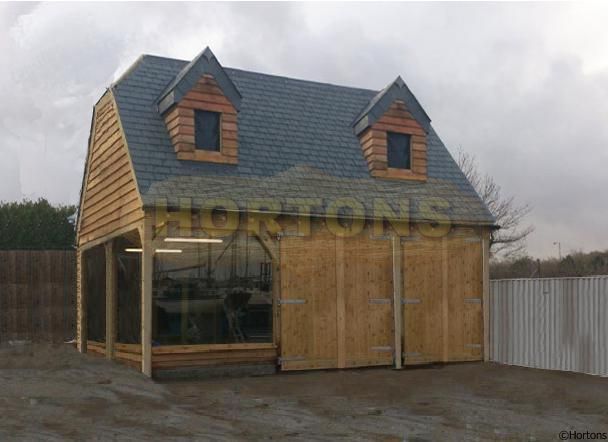

  • Dormers
  • Staircases
Online bespoke garage estimator

Not quite what you want? You can generate your own bespoke post and beam timber framed garage or carport quote by clicking here and filling in the details to request an estimate.











Additional Information for this room above 2 bay garage

Number Of Bays -     2
Min. Clearance Height - 2.160m
Max. Clearance Height - 2.210m
External Width - 5.850m
External Depth - 5.300m
Internal Width - 5.550m
Internal Depth - 5.000m

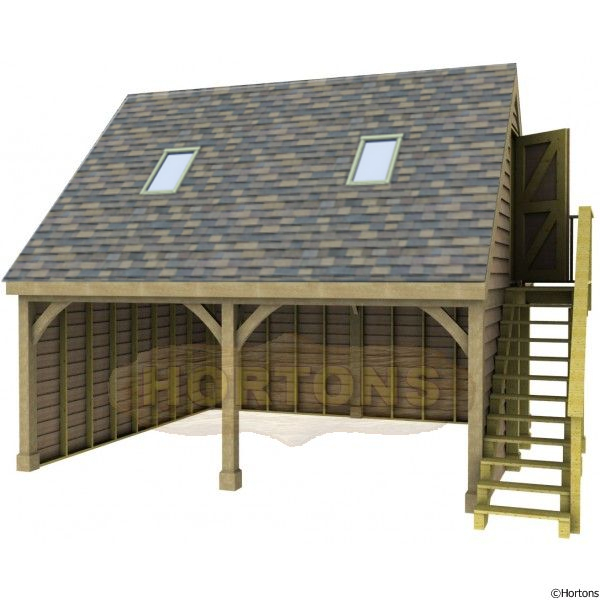

Price for dormer windows or Rooflights on application

Please click here for the additional terms and conditions covering Solidlox buildings (bottom half of page)

  • Model: SL-5953-room-over-post&beam-garage
  • Manufactured by: SL post & beam
