The Sway Clubhouse - 19.3m x 7.8m Twinskin

Starting at: £143,415.33

Please Choose:

I want to modify the size/design of this building

Upgrade doors and windows (all with toughened glass)

Black hexagonal

Green hexagonal

Red hexagonal

Black square

Red square

Recycled rubber roofing slates (50 year manufacturers warranty)

Extra partition walling (extra charges will apply if factory painting and/or installation is also required)

Timber base kit

Weed and damp-proof membranes

Twinskin insulation kit


NB - if you choose water butts please bear in mind that you will also need an extra hard standing area - they cannot be installed onto grass or dirt

Fire protection coating Class B - s1,d0 (ie better than UK Building regulations Class 0)

Factory painting - timber is planed, not sanded before treatment is applied

(NB you will need to order extra tins of paint if you intend to paint your ceiling/roof overhangs/canopies to match the walls)

Please type your colour choice from the Teknos colour chart in the text box

Please choose if you have opted for Remmers factory or self applied

Sadolin Classic & Remmers = translucent, Superdec = semi-opaque - enough in tins for 2 coats to the external walls

Please choose if you have opted for self applied Sadolin

Gold star base coat (self-application)

Discount paints deal! Big savings - save over 15%!

Sale price - discounts available with our paints and timber treatments bundle

Cabin images on our website may also show optional extras (roof coverings, verandas etc). The paint colour images on our website may vary to the colour of treatment you purchase. You should try a sample pot first - paints & stains are non-returnable.

All surfaces (internal and external) of your log cabin must be painted with an appropriate timber treatment or sealer

Installation service for log cabins and timber buildings

Other items that you may want to enquire about

There are many variables involved in building large log cabins or timber framed buildings. We can quote once the final design and specification has been decided (ie. Factory painting)

Installation service for large timber buildings

The Sway Clubhouse Specification

Log Cabin Dimensions

  • Log thickness of external wall : 45 mm
  • Width of insulation cavity : 90 mm
  • Log thickness of internal wall : 45 mm
  • 19.3m overall pavilion width
  • 7.8m overall pavilion depth including verandah area
  • Wall height : 3.5 m
  • Ridge height : 4.9 m
  • T&G roof board thickness : 19 mm
  • T&G floor board thickness : 28mm

Also Included With This Clubhouse

  • House quality, tilt & turn, multipoint locking, double glazed single windows and doors with toughened glass
  • Internal single doors, fully boarded 2100x850mm
  • Tanalised floor bearers : included
  • Internal partitioning : supplied
  • Roof shingles : supplied (choice of colours and shapes)

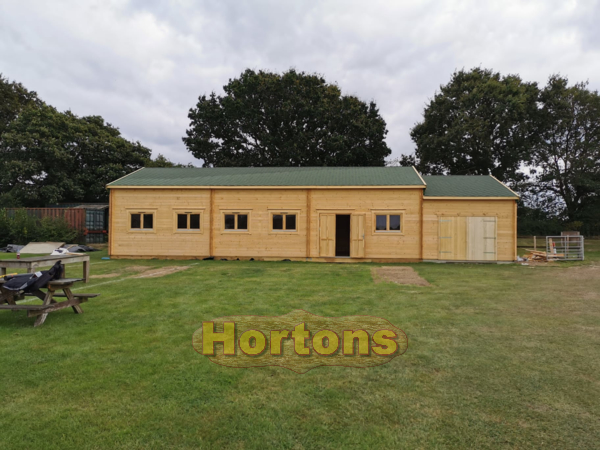

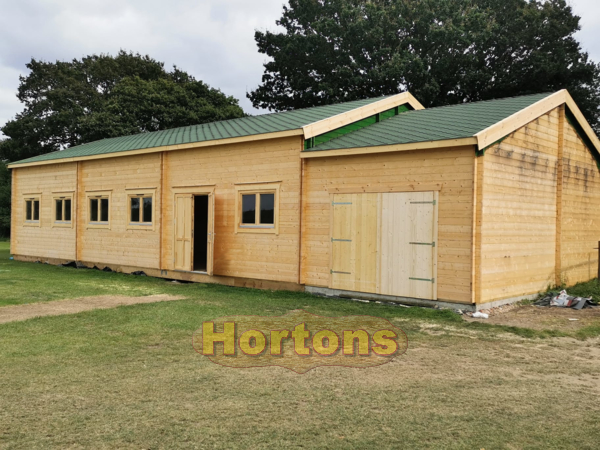

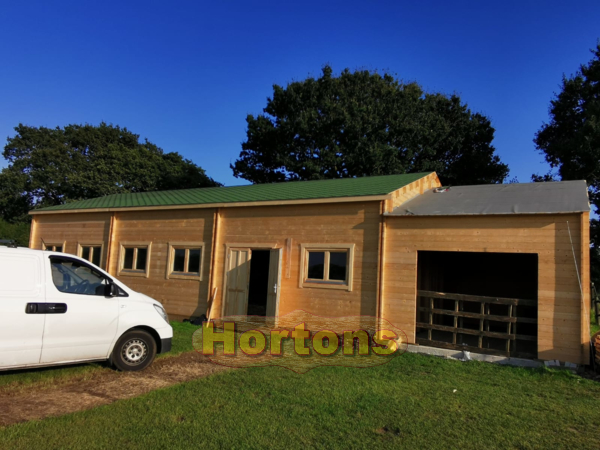

This massive log cabin clubhouse log cabin can be made to any size, with or without internal partitions and structural archways,  making it very adaptable. We can make buildings with big engineered timbers (glulam beams) to give large open area meaning they can be used for a pavilions, clubhouses, meeting rooms, village halls and many other uses. The extra height feels massive inside - the height clearance even under the structural archways is 3m! This makes is useable as an indoor archery centre (amongst many other uses).
The specification above is for a twinskin wall construction, which is the perfect choice if the pavilion will be heated using permanent wall heaters or similar as it will have to comply with building regulations for thermal efficiency, we are able to achieve this by using our twinskin, cavity wall specification.
  • Model: 9255-19378-4545
  • Manufactured by: Hortons
